Package trackpal

TrackPal: Tracking Python AnaLyzer

A modular library for the analysis of object trackings in Python with pandas.

Overview

Main features

  • Read Imaris / TrackMate files
  • Simulate tracks with different motion types
  • Compute track feature descriptors (~50 available features)
  • Mean squared displacement curves for single tracks and ensembles
  • Velocity autocorrelation curves for single tracks and ensembles
  • Visualization utilities

For most computations TrackPal relies on pandas groupby and apply mechanism.

TrackPal does not track or link objects. It analyzes already tracked objects. For obtaining object trackings from images or detections see for instance the excellent projects TrackMate, trackpy or ilastik

Examples

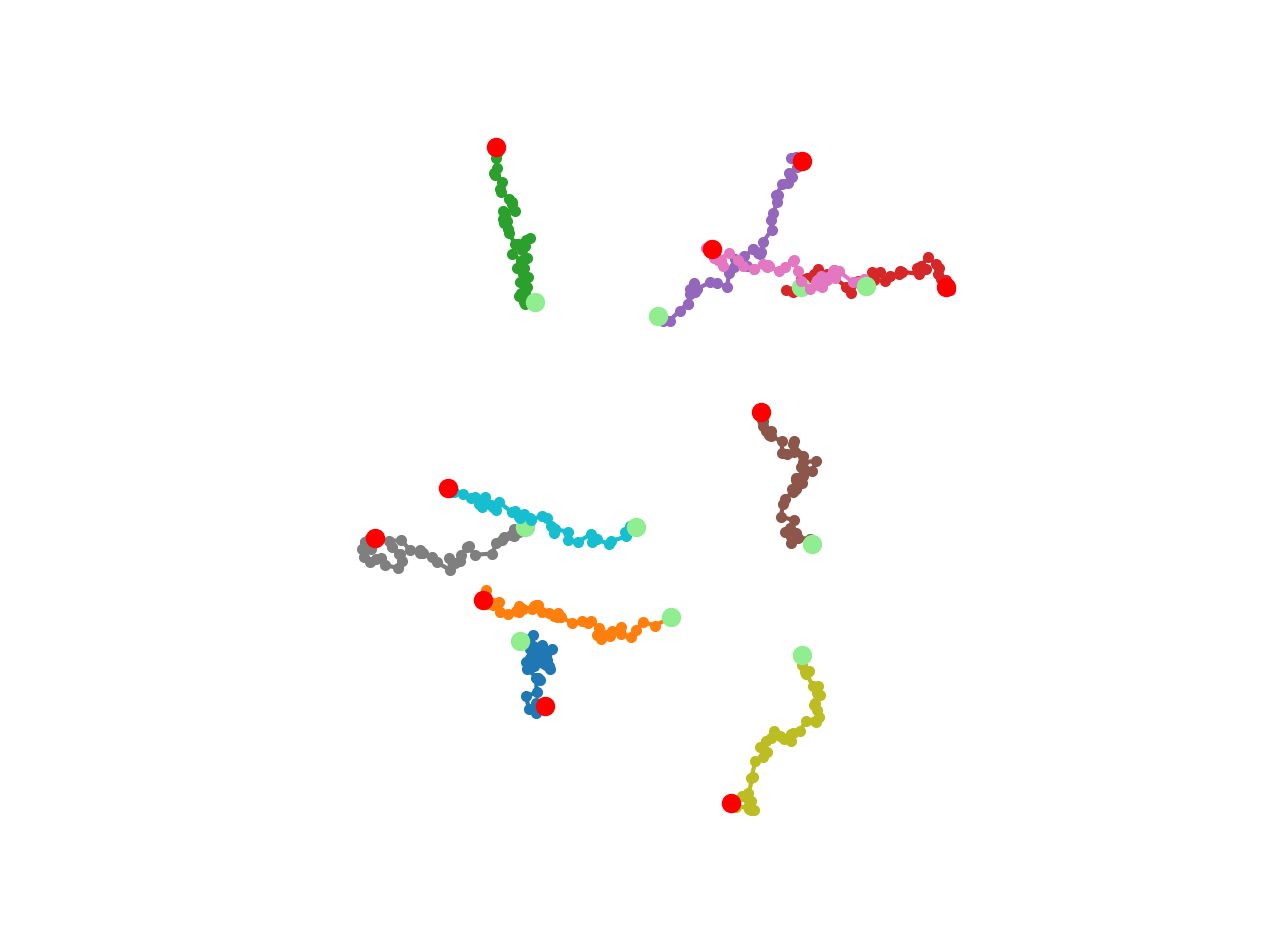

Simple simulation and plotting

import trackpal as tp

trj = tp.simulate.brownian_linear(n_tracks=10)

trj.groupby("TrackID").apply(
    tp.visu.plot_trj, coords=["Position X", "Position Y"], line_fmt=".-",
)

Output: Output

Track features

  • Simulate different motion types and compute track feautures

Mean squared displacement curves

  • Calculate diffusion constant and velocity from different simulated motion types

Installation

Anaconda Python (>=3.6) and a new environment are recommended

  1. Install Anaconda Python (>=3.6)
conda create --name trackpal_env --python=3.7
conda activate trackpal_env

Dependencies

  • numpy
  • pandas
  • scikit_image
  • scikit_learn
  • tifffile
  • tqdm
  • scipy
  • statsmodels
  • matplotlib
  • rdp
  • tqdm

From PyPi:

  1. pip install TrackPal

For development

  1. git clone this repository
  2. cd trackpal
  3. pip install -e .

Documentation

Sub-modules

trackpal.drift
trackpal.features

Module for track feature descriptors.

trackpal.fit

Helper functions for fitting lines and parabolas.

trackpal.msd

Mean square displacement

trackpal.read

Reading tracks from Imaris (.csv) and TrackMate (.xml)

trackpal.simulate

Simulate 2D tracks with various motion types

trackpal.utils

General helper and utility functions

trackpal.velocity

Velocity auto-correlation

trackpal.version
trackpal.visu

Track visualization

Functions

def concat_relabel(trj_list, trackid=None)

Concatenates tracks and sequentially relabels the track id

Args

trj_list : list[pandas.DataFrame]
List of tracks to concatenate
trackid : str
trackid column identifier

Returns

pandas.DataFrame
Concatenated DataFrame with unique track ids
